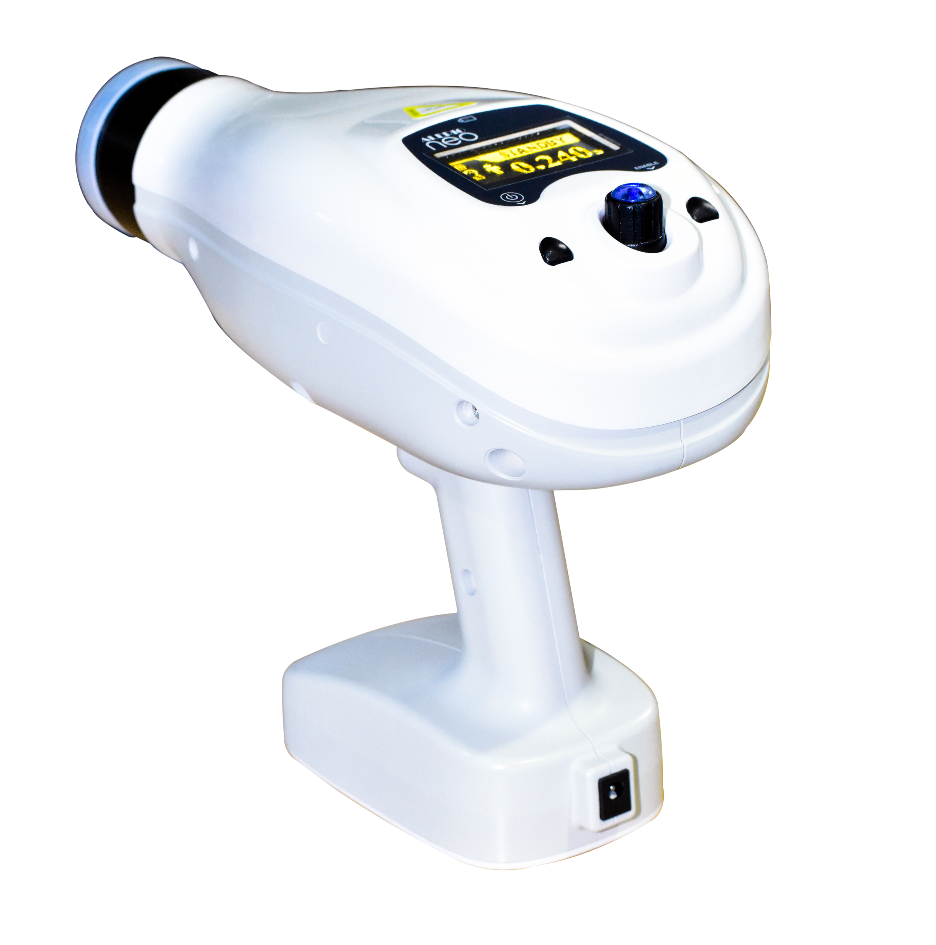

Alerio Neo Dental Portable X Ray

Alerio Neo Dental Portable X Ray Specification

Material
Medical grade plastic and metal

Condition
New

Technology
High-frequency portable X-ray technology

Portable
Yes

Operating Temperature
+5C to +40C

Humidity %
85% (non-condensing)

Sensors Specification
Compatible with digital sensors and film

Indicator Specification
Digital control panel with LED indicators

Ray Frequency Range
60 kHz - 70 kHz (high frequency)

Exposure Time Range (in Sec)
0.01 - 1.8 sec

Focus
0.4 mm (small focus)

Image System
For use with digital sensors and radiographic film

Usage
Dental Portable X-Ray Imaging

Power Source
Rechargeable lithium-ion battery

Power Consumption
50 W

Working Voltage
DC 16.8V

Dimension (L*W*H)
230 mm x 170 mm x 155 mm

Weight
Approximately 2 kg

Display
Digital OLED screen

Number of Exposures per Charge
Up to 400 shots

Application
Chairside intraoral radiography, mobile dental clinics

Focal Spot
0.4 mm

X-ray Tube Current
2 mA - 3 mA

Battery Capacity
22.2V 2000mAh

Leakage Radiation
< 0.25 mGy/h at 1 meter distance

Color
White

X-ray Tube Voltage
60 kV - 70 kV adjustable

Safety Mechanism
Automatic exposure shutdown, overheat protection

Charging Time
Approx. 3 hours

About Alerio Neo Dental Portable X Ray

The re-engineered ALERIO portable x-ray comes with improved ergonomics functions and safety. Double shield technology, the lead-lined cone with scattering shield and a new exposure algorithm ensure the best protection for the user and patient. High-quality images are possible due to active Control and the fine focal point. The convenience of portability and superior imaging is now available with local, sales and support.

Features Of Alerio Neo:

Advanced Electronic Design
Lighter And Smaller Size
Powerful Heavy Duty Battery
Sensor, Film, PSP, Compatible
Active Dose Control
Very Low Leak Radiation
0.4mm Focal Spot

Versatile Dental Imaging Anywhere

Designed for portability, the Alerio Neo Dental Portable X-Ray can be effortlessly moved between operatories or taken to mobile clinics. Its lightweight build and compact size allow for convenient use in diverse environments, supporting chairside intraoral radiography, outreach programs, and remote care. Dental professionals can rely on consistent performance wherever dental imaging is required.

Advanced Safety and Efficiency Features

This dental X-ray device incorporates advanced safety functions such as automatic exposure shutdown and overheat protection, ensuring user and patient security during frequent operation. With a high-frequency X-ray tube and minimal leakage radiation (< 0.25 mGy/h at 1 meter), the device meets stringent safety standards while delivering clear radiographic images with a small 0.4mm focal spot for crisp details.

Optimized Charging and Battery Performance

Equipped with a robust 22.2V 2000mAh lithium-ion battery, the unit is capable of delivering up to 400 exposures from a single 3-hour charge. The digital OLED display and LED indicators provide real-time feedback on operational status, battery levels, and exposure parameters, simplifying workflow and enhancing productivity for dental clinicians.

FAQ's of Alerio Neo Dental Portable X Ray:

Q: How does the Alerio Neo Dental Portable X-Ray ensure user safety during operation?

A: The device includes automatic exposure shutdown and overheat protection as safety mechanisms. Additionally, its leakage radiation remains below 0.25 mGy/h at a 1-meter distance, aligning with international safety standards for dental radiography.

Q: What is the process for charging the Alerio Neo X-Ray, and how many exposures does it offer per charge?

A: Charging is straightforward: plug the device into the charger for approximately 3 hours. Once fully charged, the unit can deliver up to 400 exposures, making it highly efficient for daily dental practice or mobile clinics.

Q: Where can the Alerio Neo Dental Portable X-Ray be used effectively?

A: Thanks to its portable design and lightweight build, the device is ideal for chairside intraoral imaging in dental clinics, as well as mobile dental clinics and outreach programs, ensuring imaging needs are met wherever required.

Q: What types of sensors and films are compatible with the device?

A: The Alerio Neo is compatible with most digital imaging sensors as well as traditional radiographic films, offering flexibility for clinics using either imaging system.

Q: When should the device's exposure parameters be adjusted?

A: Exposure parameters such as tube voltage (60-70 kV) and current (2-3 mA) should be adjusted based on the specific imaging requirement, patient size, and region of interest to optimize image quality while maintaining radiation safety.

Q: What are the main benefits of using the Alerio Neo Dental Portable X-Ray for dental professionals?

A: Its portability, rapid charging, high battery capacity, comprehensive safety features, and compatibility with multiple imaging systems provide dental professionals with convenience, reliability, and enhanced workflow efficiency.

Q: How is imaging performed using the Alerio Neo Dental Portable X-Ray?

A: Position the compact device near the patient, select the exposure settings using the digital OLED screen, and initiate the exposure. The high-frequency tube and small focal spot ensure detailed images for accurate diagnosis.
